Manufacturers of Roofing Equipment
GUARDRAIL HARDWARE
SAFETY- FALL PROTECTION
FOR TEMPORARY
or PERMANENT GUARDRAILS
Pipe Rails
GUARDRAIL WALL BASE
WOOD RAIL CONNECTORS
PIPE RAIL CONNECTORS
ANCHOR GUARDRAILS prevent falls and make roofs safe for rooftop workers.
Adding wall bases around the top
of your building's wall make it easy to set up either temporary or permanent guardrails. The system sets up and knocks down quickly
for roof construction, renovation, or maintenance.

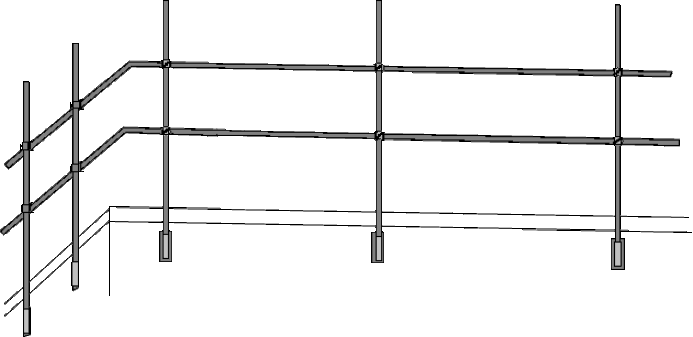

Pipe is inserted in the wall bases to provide sturdy,
vertical posts. Our rail connectors fasten wood or steel pipe rails to the posts for a completed system.
The system uses ANCHOR hardware and common building materials. 2 x 4 lumber rails are used for a convenient temporary system. 1 1/2
" pipe rails are used for durable permanent guardrails.
Meets OSHA standards [29 CFR 1926.502(b)] for posts
and rails made of 1 1/2" (nominal) steel pipe (schedule 40) or 2 x 4 (nominal) wood rails (select grade) with posts spaced
up to 8 feet apart on center. Meets Canadian standards.
Materials Weight Finish 1-49 50-99 100+
Welded Steel 6 1/4# primered 64.65 58.20 54.95
Fits 1 1/2" pipe
(schedule 40)
Welded Steel 3 3/4# painted 79.40 71.45 67.50
Fits 1 1/2" pipe
(schedule 40)
Welded Steel 3# painted 57.65 51.90 49.00
Fits 1 1/2" pipe
(schedule 40)
WALL BASE
WOOD RAIL CONNECTOR
PIPE RAIL CONNECTOR
1/1/2024 Price Each
f.o.b. Sutherlin, OR 97479
Call us for prices on powder coating
